Vision System: Inspect 500

Inspection Station: Compact Side
  Lighting: Incident - Variable Color LED
  Optics: Parallax

Reject Type: Soft Reject System

Inspection of presence, height and color of caps on a plastic milk container.  All stainless steel construction.  Utilized variable color lighting (as part of job parameters) to easily distinguish between cap colors.

Vision System: 20 x Gemini 3 with 2 -6 Cameras

Inspection Station:  Front & Back
  Lighting: Diffuse Strobe

Reject Type: Air or Ram Reject

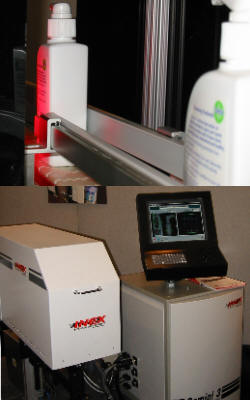

Inspection of labels and thread detail on plastic bottles including some custom applications.
Customers include Graham Plastic, CCC, Exxon, Hersheys.

Vision System: Gemini 3 with 4 digital cameras

Inspection Station: Custom 80x20 style
  Lighting: Incident, Back, and Dark Field LED

Reject Type: Air Reject

Detection of plastic over-spill on translucent containers on all surfaces.

Vision System: Inspect 100 with 1 camera

Inspection Station: Custom 80x20 style incorporated into existing equipment
            Lighting: Incident LED (Linear)

Reject Type: Interface to existing equipment

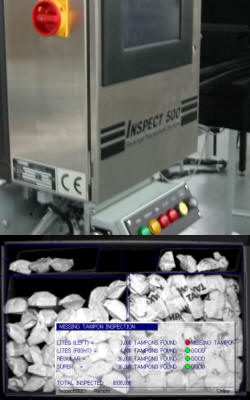

Detection of missing parts in loose packed carton

Vision System: 2 x Inspect 100 with 2 cameras (1 color)

Inspection Station: Compact Overhead
            Lighting: Diffuse LED

Reject Type: Air Reject

Other Equipment: Bar code scanning

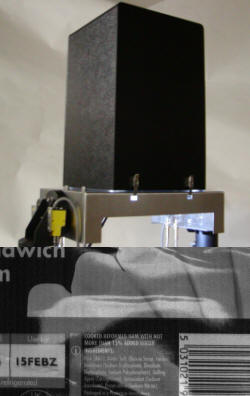

Label inspection including date and batch code OCV.  All SST construction of food certification

Vision System: Inspect / Gemini 3 with ` camera

Inspection Station: Custom Inspection Mounting, incorporated into existing equipment

Reject Type: Interface into existing equipment

Highly irregular OCR on challenging surfaces.

Vision System: 2 x Product Verification Systems with 5 Barcode scanners

Inspection Station: Product Verification

Reject Type: Air Reject

High level ControlLogix plant level inspection solution.  Multi-phase project; Phase 1 being 100% un-orientated bar-code verification

Vision Systems:
6 x Inspect 100 with 2 cameras
2 x Inspect 100 with 1 cameras
4 x Inspect 100 with 4 cameras

Inspection Station: Compact Overhead and Side Combination
            Lighting: Incident (ring), and Back LED

Reject Type: upto 2 x Ram Reject each

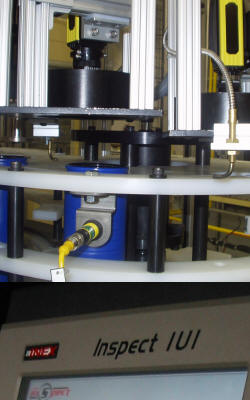

Sorting and detection of molding defects
Defect and Dimensions of Closures
Seam Damage on cans

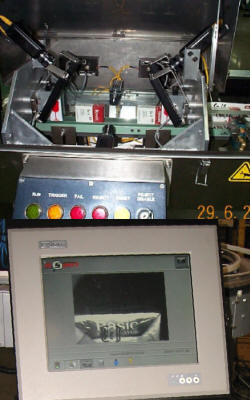

Vision System: 2 x Inspect 100 with 4 cameras

Inspection Station: Pack inspection station
            Lighting: Incident LED

Reject Type: High-speed Air Reject system

Project to design and build product in conjunction with a partner for the Chinese tobacco market.

Vision System: 2 x Inspect 100

Inspection Station: Side-wall
            Lighting: Back Fluorescent

Reject Type: Air Reject

Other Equipment: Bottle Orientation

Detailed detection in embossed area of high quality bottles. (as part of SV/Si2 order)

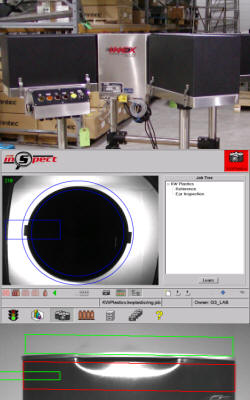

Vision System: Gemini 3 with 3 cameras

Inspection Station: Custom 80x20 style with high precision optics
            Lighting: Back and Incident LED

Reject Type: Air Reject

+/- .002 inspection accuracy on various neck measurements on plastic bottles

Vision System: 4 x Inspect 100 with color camera

Inspection Station: Compact Overhead
            Lighting: Incident (Ring)

Reject Type: Interface to existing equipment

Optional Equipment: Ultrasonic Height Sensor

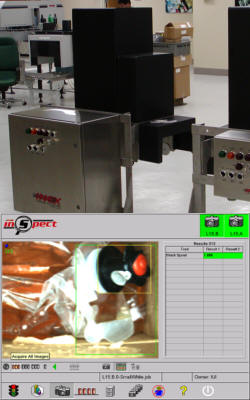

 Detection of correctly loaded wine bag.  Inspect was highly customized to customer specification (including shared AB ControlLogix).
Customers include Gallo Wine, The Wine Group.

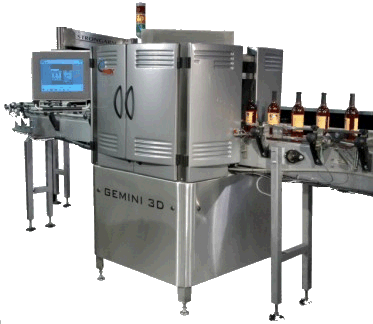

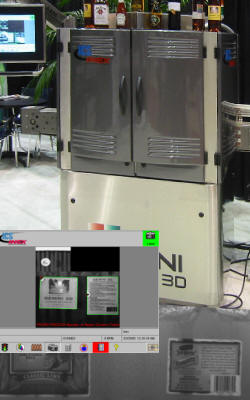

Vision System: Inex/Cognex with 4 high-resolution cameras

Inspection Station: C3D Inspection Station
            Lighting: Diffuse

Reject Type: soft reject system.

Revolutionary label inspection for un-orientated containers.
Customers include Gallo Wine, Heinz, Casella, Modelo.
